S18
S-series
BROADBAND DIRECTIVITY MADE SIMPLE
S-series - the second generation of Passive End Fire Technology

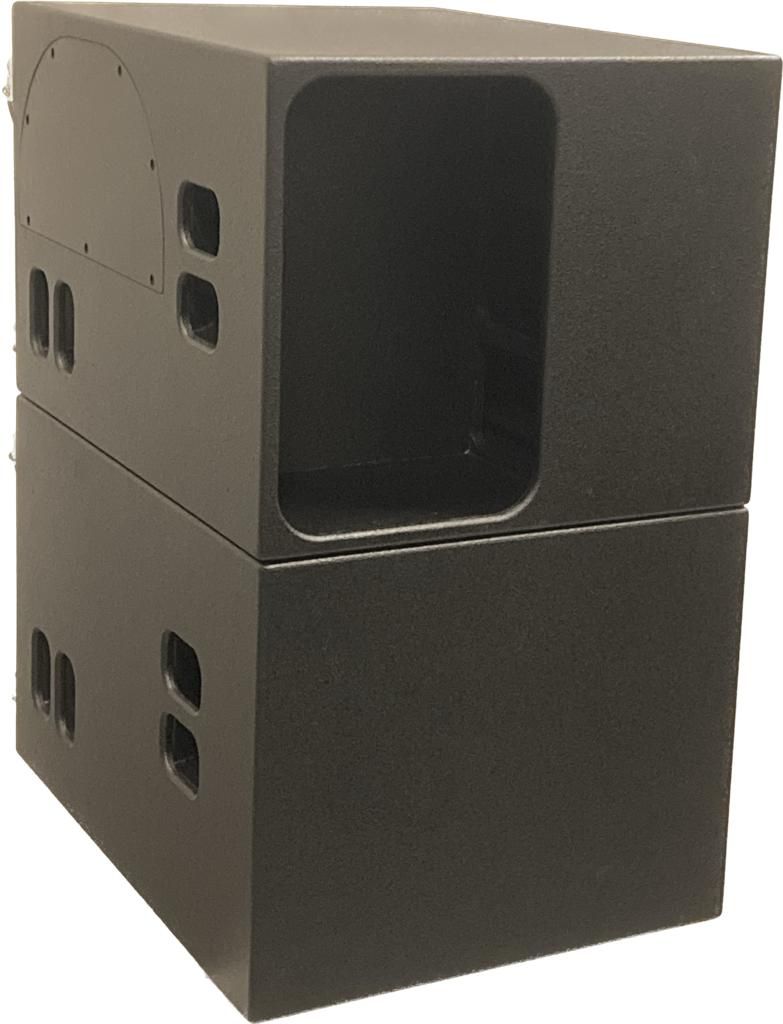

 S18F and S18R

"S28 split in two"

S18 is unique combination of a horn-loaded S18F subwoofer and reflex-loaded counterpart S18R working together as a dual 18" passive cardioid subwoofer featuring Passive End Fire Technology.

Low frequency directivity control with ONLY ONE amplifier channel required - no bi-amp presets required!

Patented Passive End Fire Technology hybrid enclosure design for the most flexible passive cardioid sub system to date!

"Best from both worlds" Extremely accurate and dynamic low frequency reproduction!

Two S18F horn-loaded units option with one S18R reflex unit gives even more punch or "kick" with even better rear reduction.

APPLICATIONS

  • Noise sensitive installations
  • Medium to large scale touring
  • High end installations from night clubs to live music venues
  • Low frequency extension for all S-series tops

SPECIFICATIONS (S18F + S18R system)

  • Frequency Response (-6 dB): 32 Hz – 200 Hz
  • Horizontal Coverage (-6 dB): 150 degrees nominal
  • Vertical Coverage (-6 dB): 150 degrees nominal
  • Max SPL: 134/140 dB (free space)
  • Max SPL: 144/150 dB (S18F+S18F+S18R, half space)
  • Sensitivity, 1w/1m: 101 dB (free space)
  • Impedance: 4 ohms
  • Crossover: 80 Hz – 100 Hz active
  • Power handling: 2400 W(rms), 10000 W(peak)
  • Recommended HP-filter: 30 Hz, 12 dB/octave

DRIVERS (system)

  • S18F: (1) x 18” neodymium magnet cone driver, 4” voice coil
  • S18R: (1) x 18” neodymium magnet cone driver, 4” voice coil

 ENCLOSURE (single unit)

  • Enclosure material: Birch plywood, textured black paint finish
  • Grille: Cold rolled steel grille, black paint finish
  • Connectors: (2) x NL4, +/-1: Input, +/-2: Linked
  • Dimensions: 600 mm x 500 mm x 800 mm (930 w/wheels)
  • Weight: 40 kg
