C10

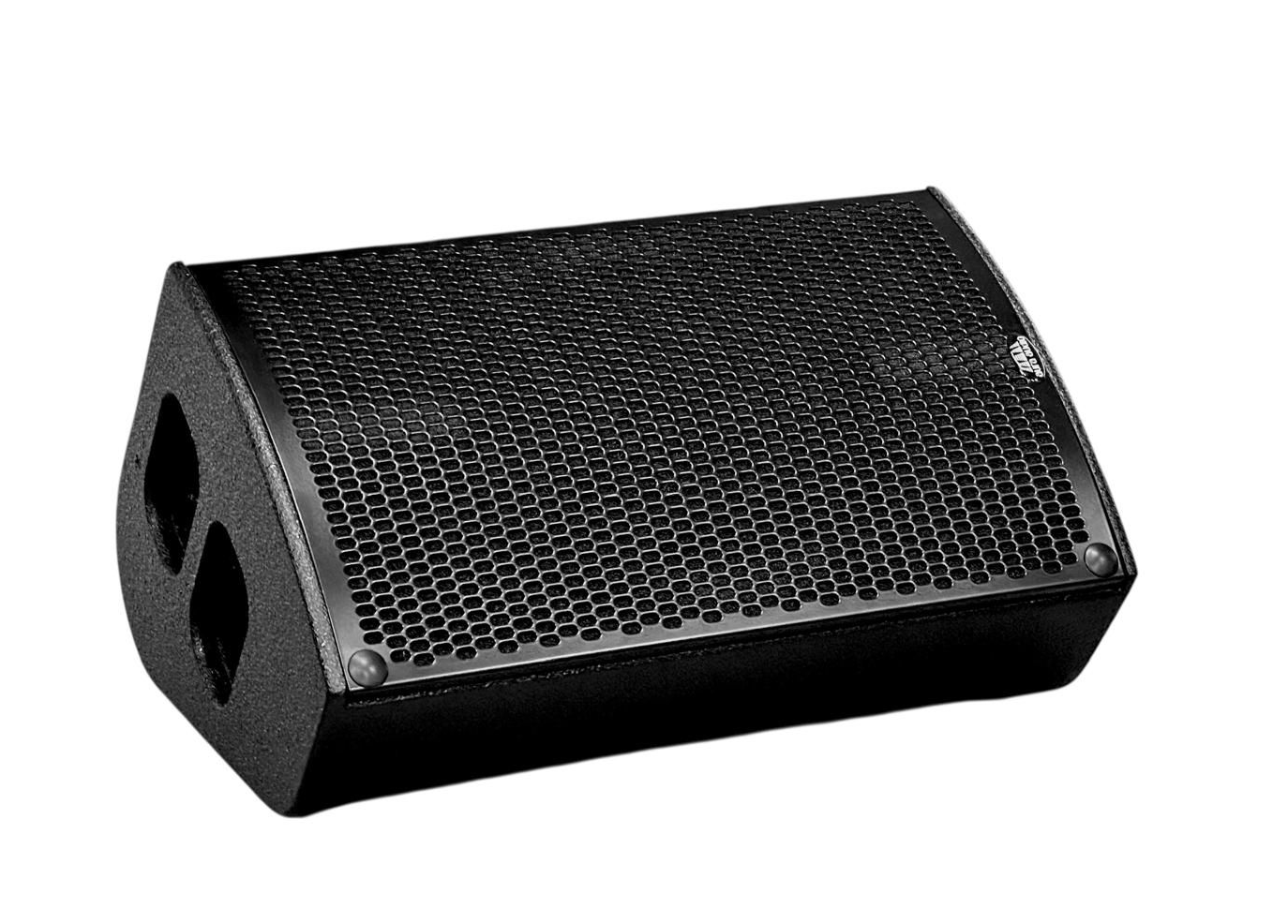

The C10 is a versatile passive two-way compact loudspeaker. The integration of a 35mm stand adaptor inside the handle and the addition of optional M8 mounting points add to the flexibility of this truly multi-purpose model. The 30 degree low profile enclosure means the C10 offers a discrete solution for stage monitoring applications. And the high power to weight ratio makes it extremely useful for small PA applications too.

The C10 consists of coaxially mounted 10” + 1” drivers. The 100 x 100 degree symmetric dispersion allows controlled coverage of larger areas from a single source. The extended LF response, down to 65Hz (-6dB), makes it a truly full-range loudspeaker. An ultra light fibre-class- plywood composite enclosure, with CNC machined handles, makes the C10 easy to handle and a pleasure to use.

APPLICATIONS


  • Medium SPL stage monitors
  • Front of house for small size touring
  • Medium size installations
  • Speech reinforcement
  • Music reinforcement with or without subwoofer

SPECIFICATIONS


  • Frequency Response (-6 dB): 65 Hz – 20 kHz
  • Horizontal Coverage (-6 dB): 100 degrees
  • Vertical Coverage (-6 dB): 100 degrees
  • Max SPL : 122/128 dB (free space)
  • Sensitivity, 1w/1m: 98 dB (free space)
  • Impedance: 8 ohms
  • Crossover: 2.8 kHz passive
  • Power handling: 250 W cont, 1000 W peak
  • Recommended HP-filter: 65 Hz, 24 dB/octave

DRIVERS


  • LF: (1) x 10” cone driver, reflex-tuned
  • HF: (1) x 1” compression driver, coaxial

ENCLOSURE


  • Enclosure material: Bended birch plywood, textured black paint finish
  • Grille: Cold rolled steel grille, textured black paint finish
  • Connectors: (2) x NL4, +/-1: Input, +/-2: Linked
  • Dimensions: 500 mm x 310 mm x 260 mm
  • Weight: 12 kg
