D80DSP
D-series

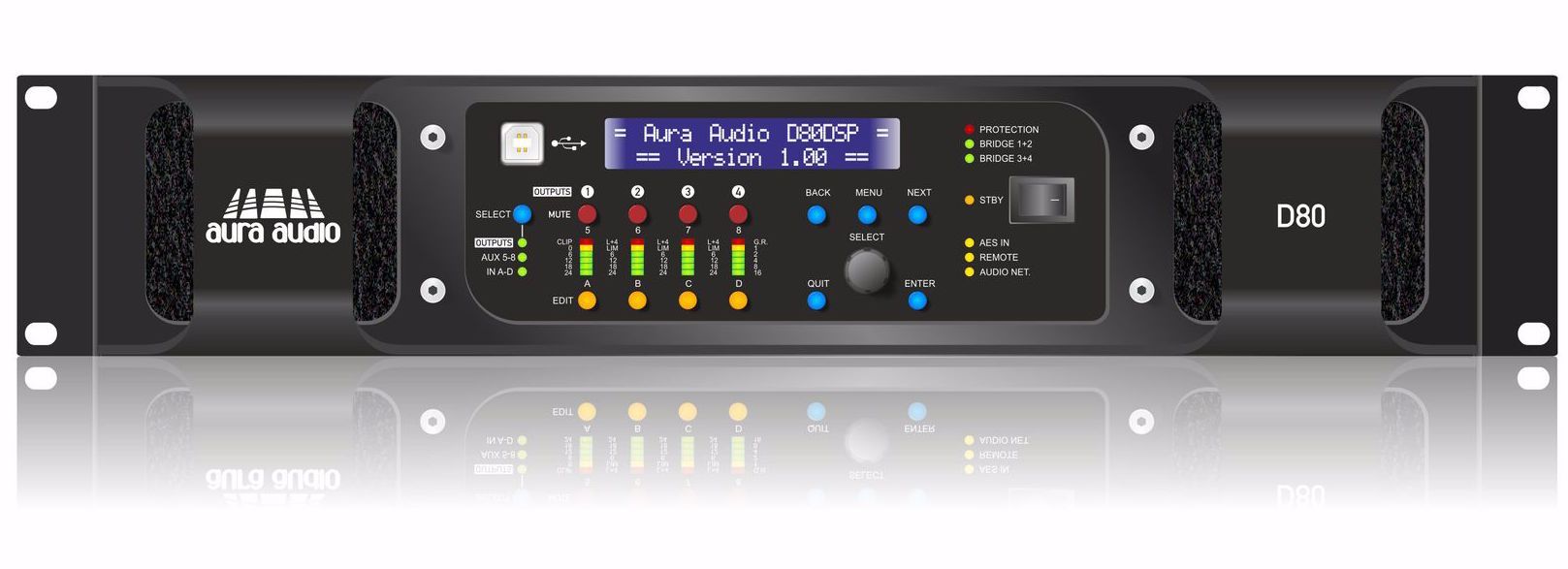

D80DSP

D80DSP is a combination of signal processing and amplifier channels with aux DSP outputs.

Easy access control via front panel is combined with PC and iPad remote controls and wall panel for installation use.

High fidelity, high efficiency class-D power amplifier stages are powered by a switch-mode power supply.

The build-in speaker preset library for all Aura Audio speaker models with highest definition DSP processing.

SPECIFICATIONS

  • Number of amplifier channels: 4
  • Output Power: (per channel)
  • 8 ohms 1000W
  • 4 ohms 2000W
  • 2.7 ohms 2200W
  • 2 ohms 2000W
  • Output Power: (bridged)
  • 8 ohms 4000W
  • 4 ohms 4000W
  • Processing: 24bit (ADC and DAC)
  • Internal sample rate: 96kHz
  • System THD: <0.08% (2kW, 1k)
  • Freq. resp.: 3Hz-30kHz -3dB
  • Gain; Delay; Polarity; IIR EQ (PEQ, shelving, variQ, all pass, phase, notch, band pass) for each input and output (4 per output, 8 per input)

CONNECTIONS

  • Input connectors: 4 x XLR (two for AES)
  • Output connectors: 4 x Speakon
  • AUX DSP outputs: 4 XLR
  • Mains connector: PowerCon
  • Remote Control: USB (front panel)
  • Rear Panel: RS485 bus, Direct Ethernet, GPIO Port Dante Audio Network (optional) Up to 32 units can be connected into a closed control network

DIMENSIONS:(mm)

  • Amplifier 2U/88(h) x 482(w) x 428(d)
  • Weight: 10kg
  • Shipping weight 12kg
  • Shipping box: 250 x 610 x 600
