F1
F-series
F1

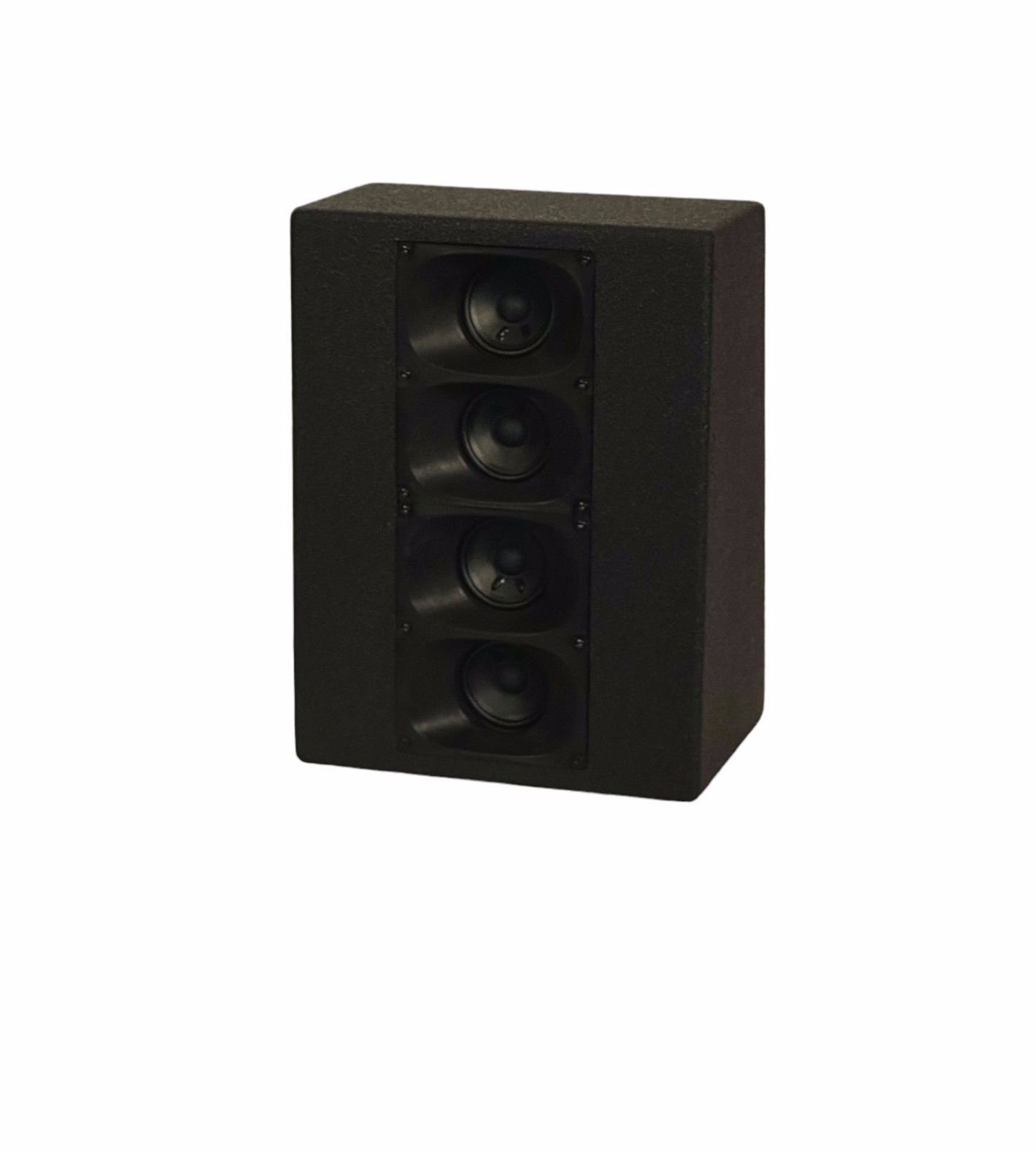

F1 is a passive high-end monitor speaker with lowest possible colouration. It features a unique combination of high output, high directivity, extremely well defined stereo image with low distortion.
It consists of four (4) 3” cone driver loaded with dedicated high directivity horn without crossover. This means wider phase-shift-free frequency band and even higher directivity. With 60x15 degree nominal dispersion F1 makes it easy to cover only a specific area according to installation with lowest possible room coloration.
F1 is driven with Aura Audio D2 amplifiers featuring Class-D amplifier, analog filter and EQ networks, together with sealed enclosure which ensures a seamless and phase coherent transition between F1 and recommended sub extension FSUB.
FEATURES
- Extreme transparency and stereo image
- Unusually accurate phase and decay response due to no crossover
- Extended frequency response to 22Hz with FSUB
- High directivity character for low room interference
- Rugged birch plywood construction
- Textured semi-matt black paint finish
- (other finish options on request)
APPLICATIONS
- Studio and mastering studios
- High quality home theatre
- Small to medium movie theatres
- Music Bars and restaurants
SPECIFICATIONS
- Frequency Response (-6 dB): 90 Hz – 18 kHz
- Horizontal Coverage (-6 dB): 60 degrees
- Vertical Coverage (-6 dB): 15 degrees
- Max SPL: 110/120 dB (continuos/peak, free space)
- Sensitivity, 1w/1m: 102 dB (free space)
- Nominal Impedance: 16 ohms
- Amplifier output: 20 W cont, 100 W peak
DRIVERS
- LF/HF: (4) x 3” cone drivers, dedicated waveguide
ENCLOSURE
- Enclosure material: Birch plywood, textured black paint finish
- Connectors: (2) Neutrik Speakon
- Dimensions: 380 x 280 x 220mm
- Weight: 7 kg
DOWNLOADS
