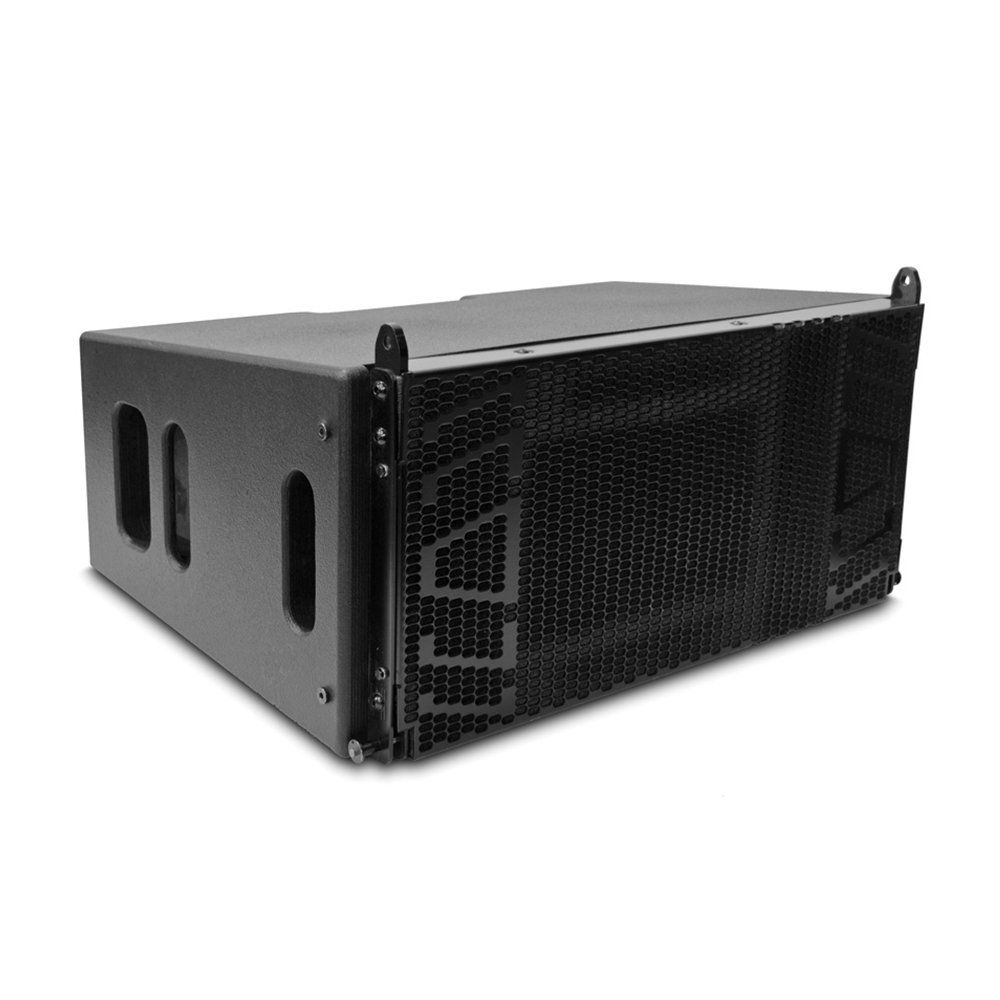

A2 is a compact passive 3-way line array speaker. It consists of two (2) 10” low frequency driver, 6.5” cone driver loaded multi-path waveguide and two (2) 0.65” exit compression drivers loaded with triple exit waveguides. Two (2) 10” low frequency drivers are loaded with narrow-Q band-pass horn for extra sensitivity which actually equals two front loaded 12” drivers in SPL over 150-400Hz. Low frequency response is extended to 65Hz using tuned combined back volume.

The heart of A2, like in its predecessor A1 is M6 mid frequency driver consisting of 6.5” neodymium magnet cone driver loaded with internationally patented multi-path waveguide. Not only does this technology increase the sensitivity 10dB but M6 sound channels also cancel harmonics making distortion levels at max SPL over 10dB lower compared to common direct radiators. M6 also features wide horizontal beam width and high cut off frequency of 4kHz making it possible to use small diaphragm lightweight compression drivers for high frequencies for increased sensitivity and detail. Up to twelve (12) (4 x 3 units) A2 can be driven with Aura Audio D80DSP or D100DSP powered controllers.

A2 line array speaker offers two optional parameters：

Frequency Response（+-3dB)：60-22kHz/(+-3 dB): 65–22KHz;

Horizontal coverage（-6dB)：90-120°/（-6dB）：90°；

Vertical coverage（-6dB)：15°/（-6dB）：10
