i3

i-series

i3

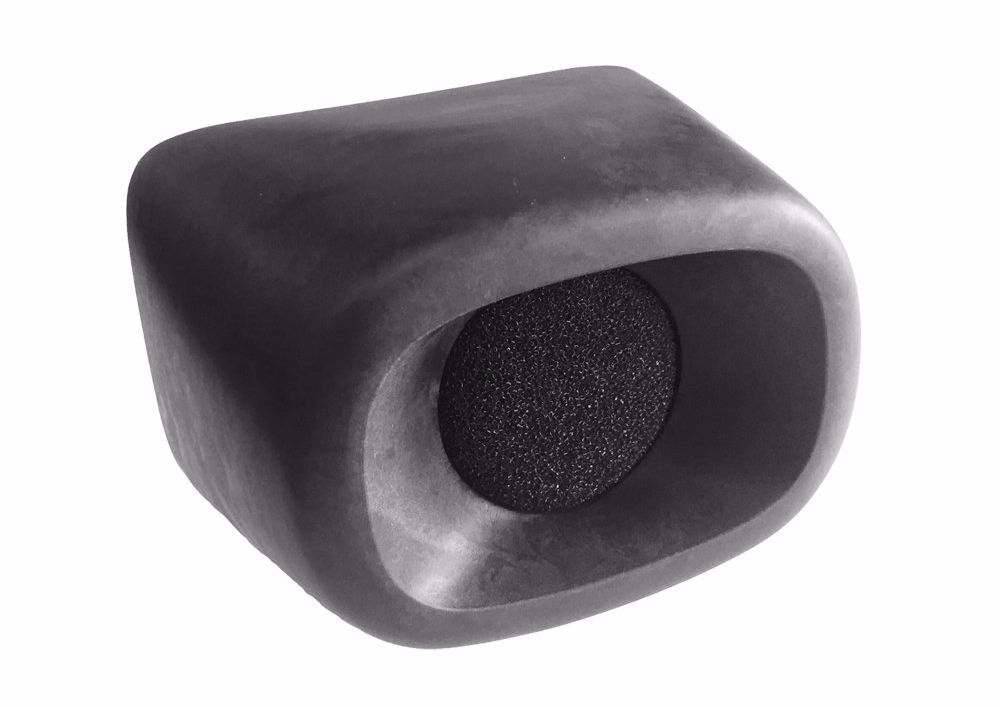

The i3 has a unique aesthetic and is a collaboration between award winning Finnish designer Mr Stefan Lindfors and the acoustic engineers at Aura Audio. Together this brings a timeless and elegant look and amazing acoustic performance into one speaker. Utilising a next generation bio-composite material the injection moulded enclosure is rigid and resonance free, while also being lightweight. The combination of natural uncoloured sound and novel design make the i3 a real all round work horse, with almost limitless potential.

The i3 utilises a unique 3” high sensitivity cone driver matched to a proprietary acoustic waveguide. This design increases mid and high frequency efficiency and also the directivity characteristics. A 100 x 60 degree dispersion pattern helps keep sound where you want it. Using the dedicated hardware the i3 can be mounted individually or in vertical columns of up to six units. Allowing increased coverage and power to match the space.

Unlike most other installation loudspeakers i3 does not feature a crossover or reflex tuning. The positive impact these design decisions have on the sound quality is all important. The i3 delivers a fully flat phase response and most accurate transient response with no decay or common tuning related problems.

APPLICATIONS


  • Small to medium installations
  • Night clubs and music bars
  • Speech reinforcement
  • Music reinforcement with XD10 subwoofer
  • 100V option with a transformer (i3-T)

SPECIFICATIONS


  • Frequency Response (-10 dB): 100 Hz – 20 kHz
  • Horizontal Coverage (-6 dB): 100 degrees
  • Vertical Coverage (-6 dB): 60 degrees
  • Max SPL(cont/peak): 105/112 dB (free space)
  • Sensitivity 1w/1m: 92 dB (free space)
  • Impedance: 16 ohms
  • Impedance options: 4 ohms, 8 ohms and 100V
  • Power handling: 20 W cont, 100 W peak
  • Recommended HP-filter: 120 Hz, 12 dB/octave

DRIVERS


  • LF/HF: (1) x 3” neodymium magnet cone driver, horn-loaded

ENCLOSURE


  • Enclosure material: UPM Formi and steel plate
  • Grille: Cold rolled steel grille, black foam
  • Connectors: spring-loaded
  • Dimensions: 185 mm x 126 mm x 130 mm
  • Weight: 0.8 kg
